Description

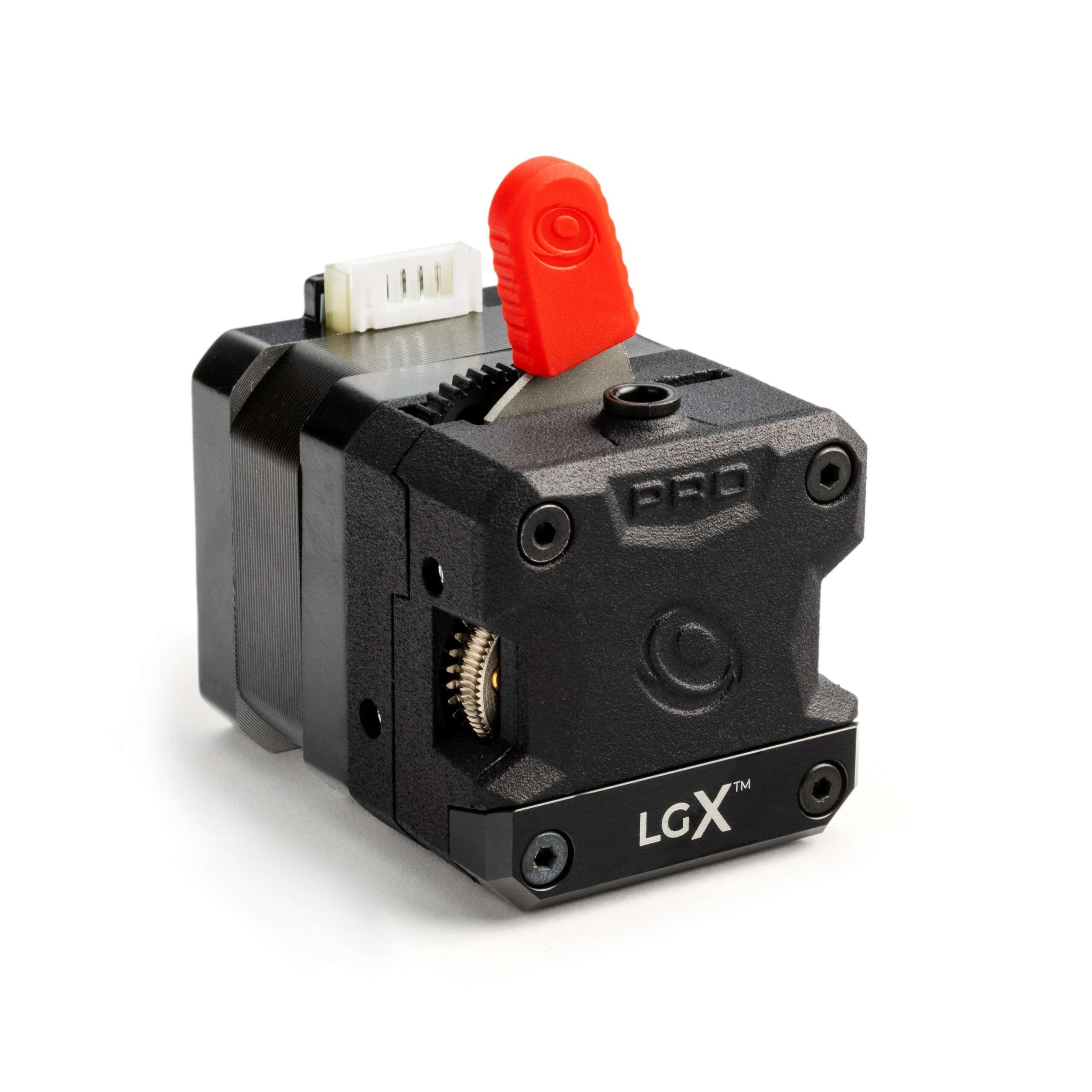

Bondtech LGX PRO™ Metal Extruder – 1.75mm
n

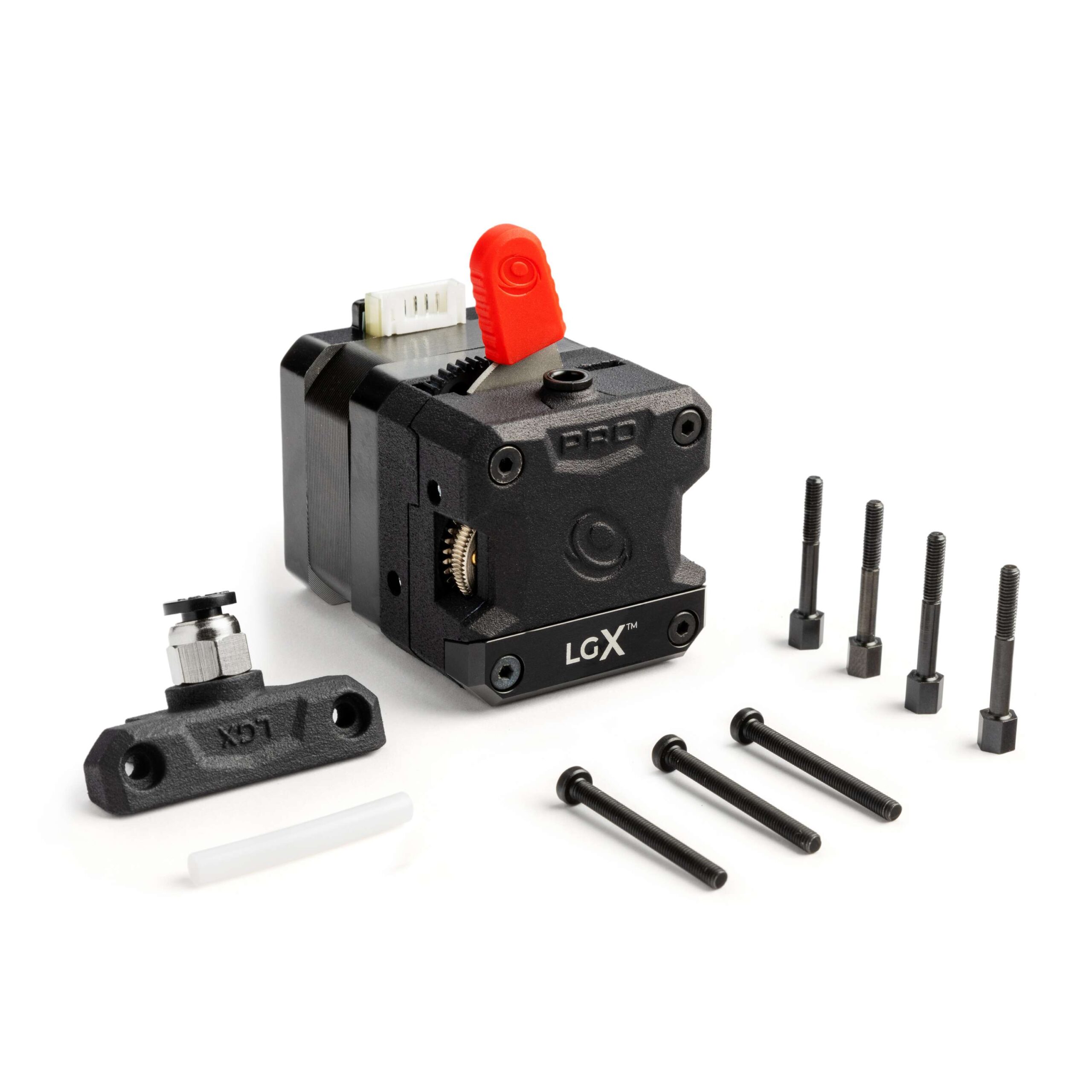

Each LGX® Pro Metal 1.75 extruder is supplied with:
- 1x LGX® Pro Metal 1.75mm feeder
- 1x Custom Nema17 30mm pancake stepper motor
- 1x Metal Push-in fitting M7 4mm
- 1x 2mm Hex Key (recommended tool)
- 1x Product Line Information Brochure
- 1x Powered By Bondtech sticker
- 4x M3x23 mm Stud with 5mm Hex with M3x4 thread
- 30mm PTFE tube to use in the Direct Drive Interface Plug
The LGX® Pro Metal eXtruder uses Bondtech’s new Dual Drive Technology based on large drive gears.
10 cool features of the Bondtech LGX Pro Metal :
- Aluminum housing
- Strong 30mm stepper motor
- Larger drive wheels, for increased filament grip
- New filament pre-tension lever – open + 4 positions – for repeated results
- Multi-function interface socket, for tool or application quick swap
- Compact, light & symmetric design, for increased performance and compatibility
- Multiple mounting hole patterns, for easy and flexible setup
- Full Hardened Steel Drive Train
- Support longer hotends with the Aluminum Interface Plug
- More protection against dust or particle saturated industrial environments
A full metal stronger and more robust LGX Large Gears eXtruder for industrial and high temperature applications with 1.75mm filaments.HighlightsSteel drive trainHigher max feed rateMore push forceAluminum housing- EXT01LGX41036- 300- Hersteller: Bondtech
