Bondtech CHT Vol Coated Brass Nozzles – 5-Pack

Description

Bondtech CHT Vol Coated Brass Nozzles – 5-Pack

Main Bondtech CHT® Vol Advantages

• Higher melt capacity by increasing the surface area of the heating walls

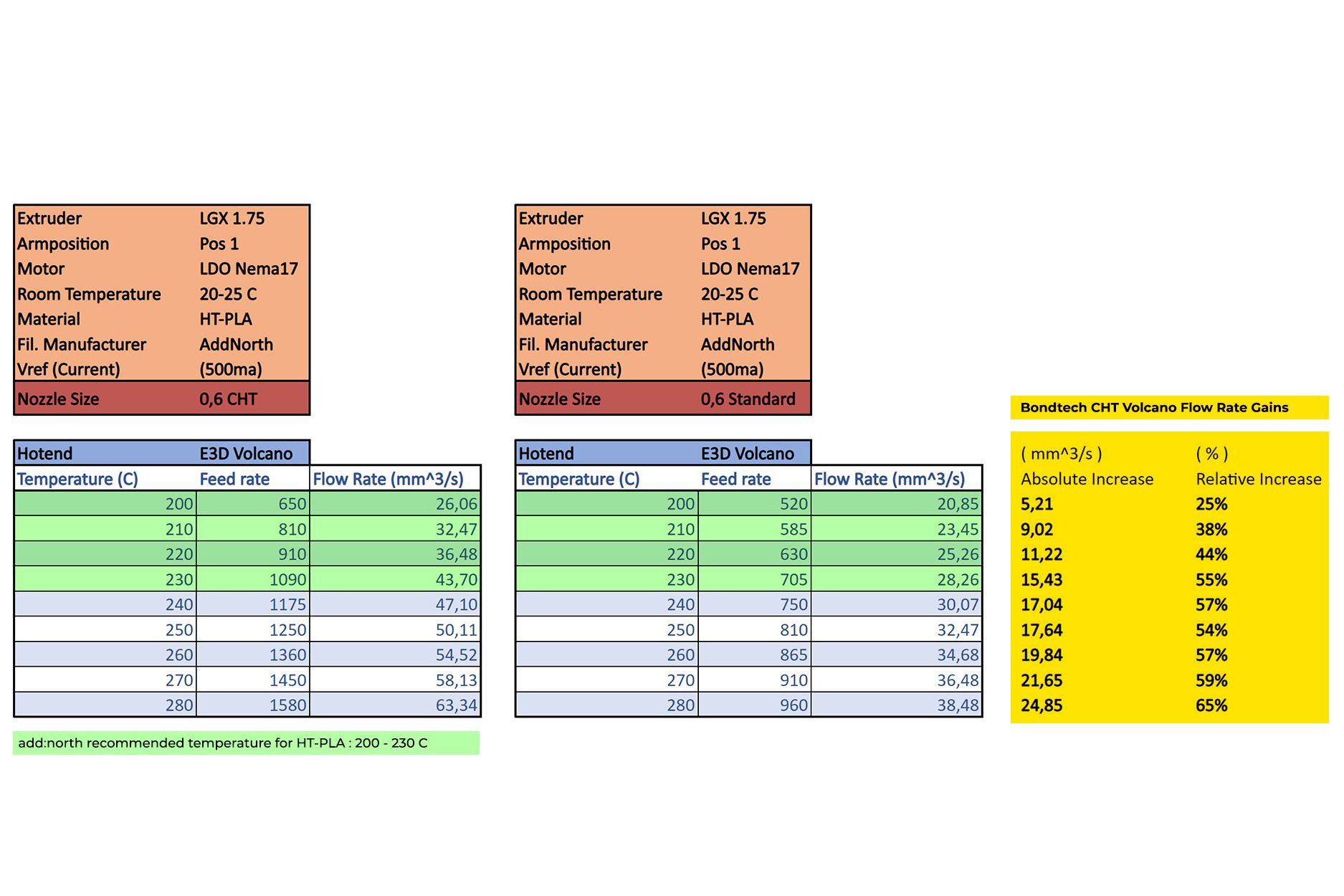

• Flow Rate gains close to 50%
• Competitive price/performance price
• Machined with ultra-precision
• Brass nozzle with Nickel coated surface
• Follows nozzle standard:
  • Volcano (M6×1×14.5×21)
• May be used with 1.75 or 2.85mm hotends.

Flow Rate gains may vary. Results depend on the hardware, materials and print settings used.

Advantages of the Bondtech CHT® technology:

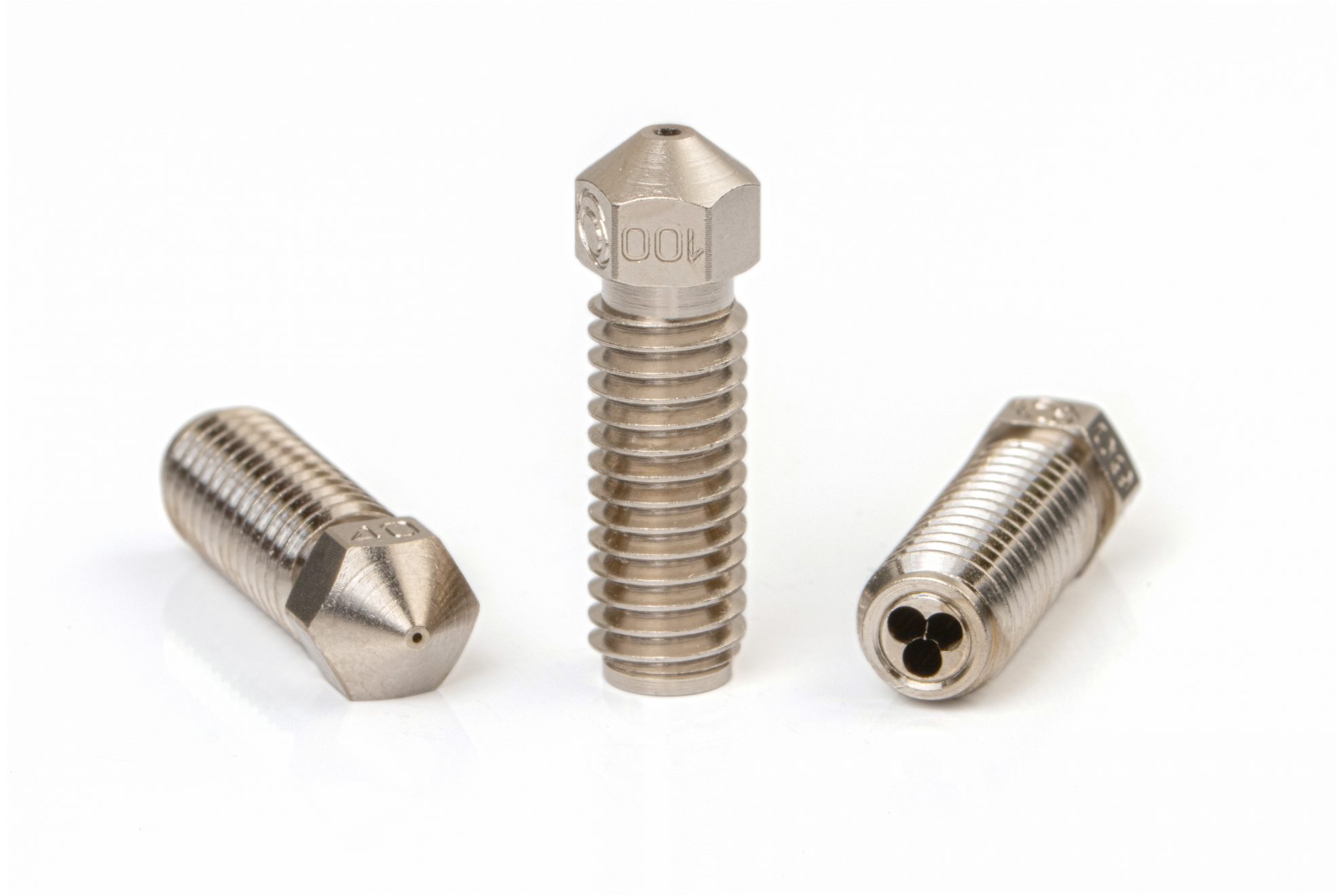

Bondtech CHT® nozzles split the filament into 3 thinner strands allowing to melt the material from within. In doing so, the material melts faster and higher flow rates can be used.

Core Heating is a patented technology

Registration number: EP3445568A1
Nozzles for 3D printers made of metal with at least one or a multitude of holes to increase the surface area of the heating walls.

Advantages of the Nickel Coating

A Nickel coating is applied to our Coated Brass nozzles to provide protection against corrosion, erosion, and abrasion. Nickel coated nozzles have more corrosion resistance and lower coefficient of friction, which allows slicker feeding of material and delays plastic adhesion to the nozzle’s surface.

Recommended Materials

Use this nozzle with the following materials:

• PLA
• ABS
• HIPS
• PC
• TPU
• TPE
• Nylon
• PETG
• ASA
• PP
• PVA

For technical and abrasive materials we recommend to use other nozzles in our range.

Different nozzle sets for different materials

We recommend you to have several sets of nozzles because:
Using different materials with the same nozzles causes deposit build-up inside the nozzle.
These deposits will cause blockages.
We recommend changing nozzles when changing materials.

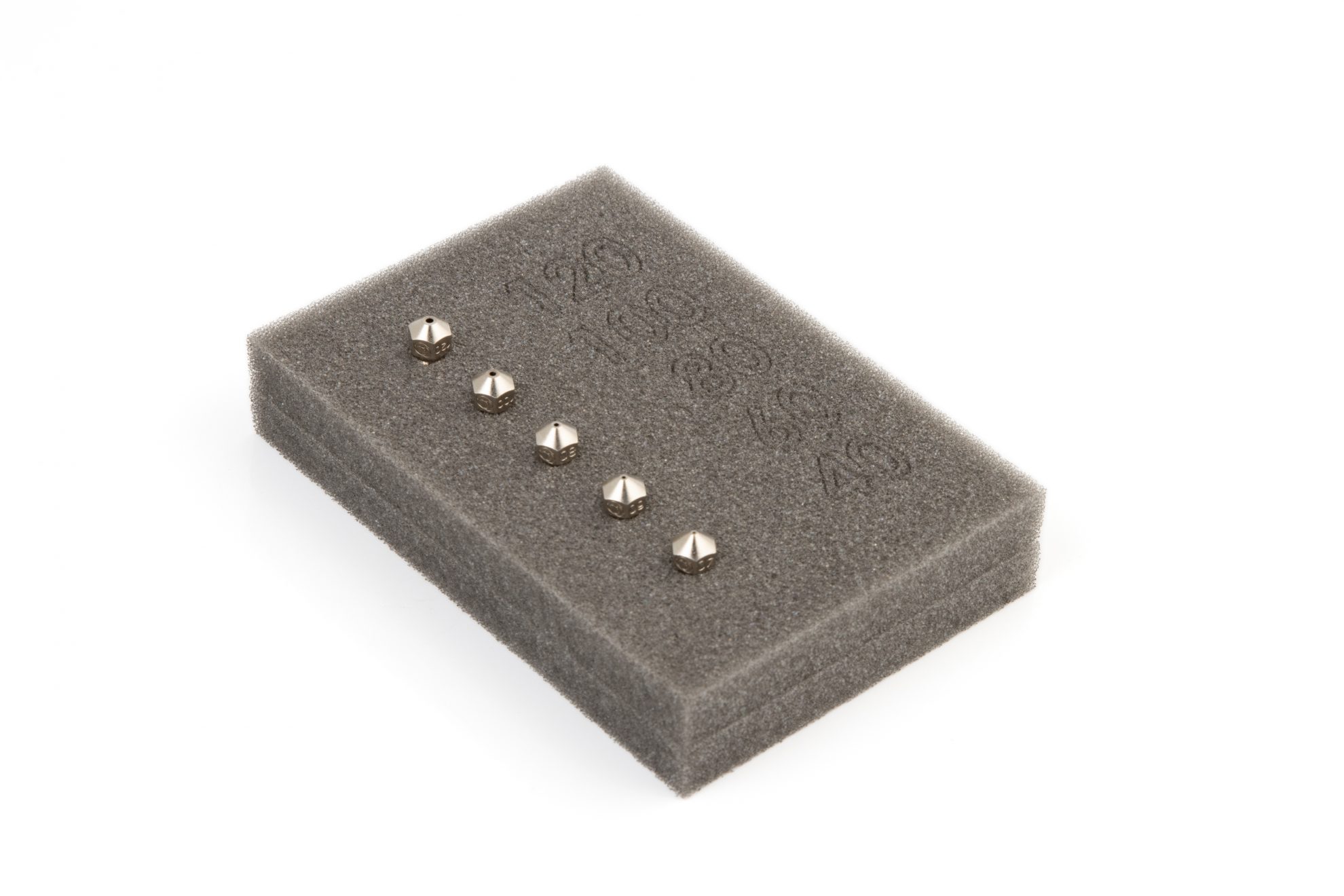

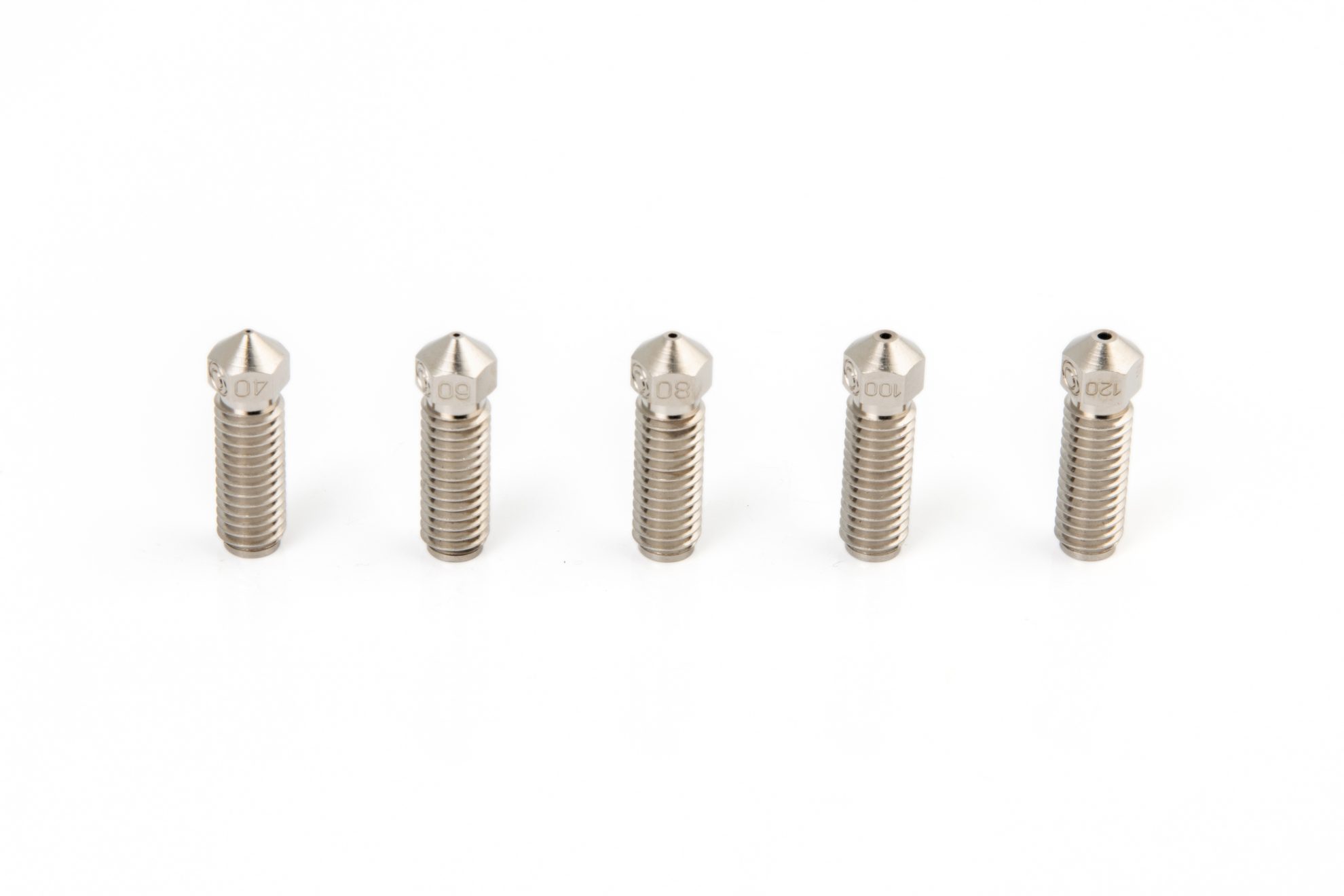

Includes the following sizes : 0.4, 0.6, 0.8, 1.0, and 1.2mmThese are nozzles for High Flow applicationsThey are manufactured by Bondtech in-house, and will fit the following blocks/printers:E3D Volcano blocksOther Volcano type blocksAnycubic Kobra and Kobra MaxAnycubic VyperArtillery Genius ProArtillery Sidewinder X1 and X2FLSUN Super RacerLulzbot TAZ MOARstruderOther…Features1 unit per packAvailable sizes : 0.40, 0.60, 0.80, 1.0, and 1.2mmOptimized for 1.75mm filamentCompatible with 2.85mm filamentRequires 6mm wrench- 600-C-CHT-VOL-175-T- 100- Hersteller: Bondtech
