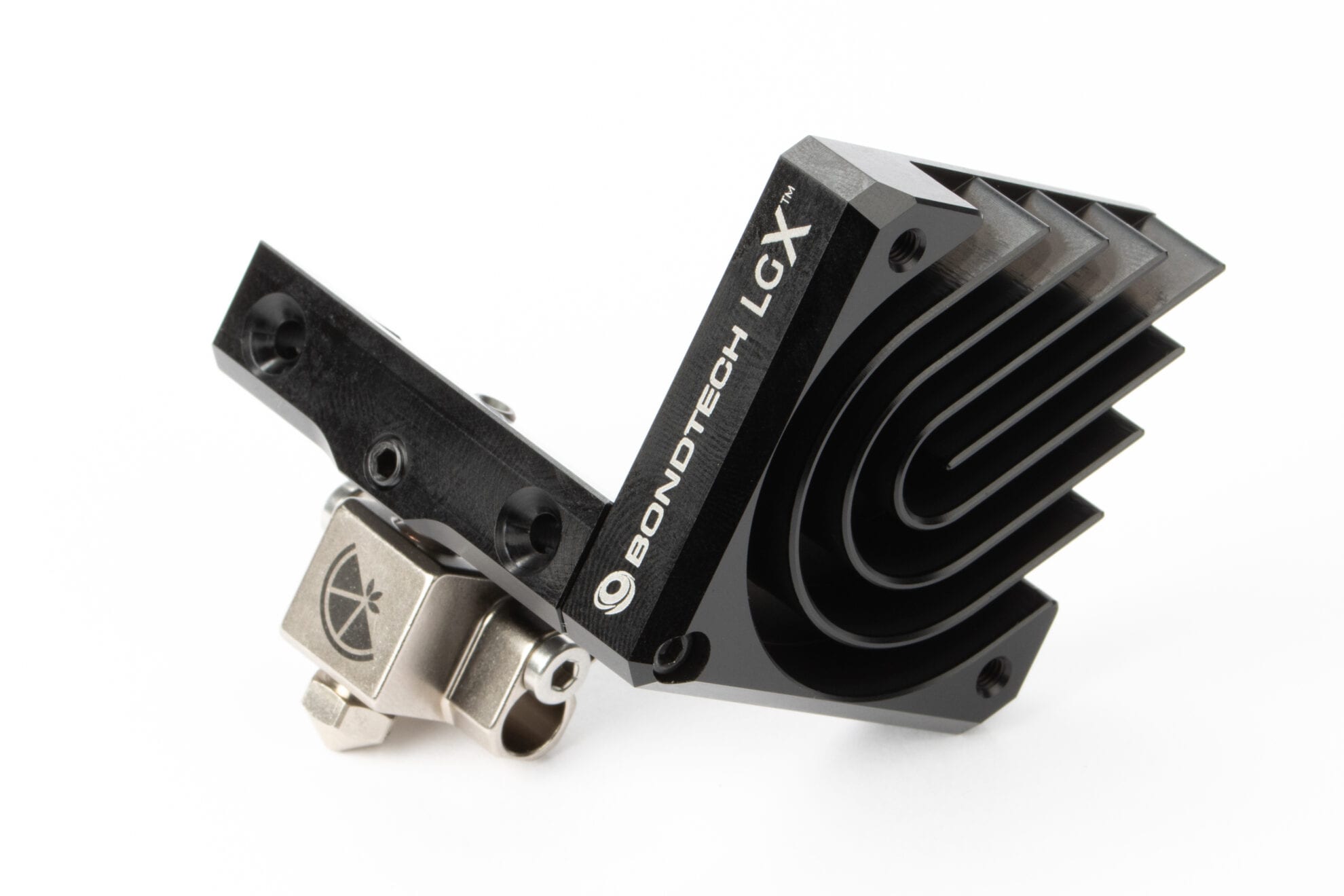

Bondtech LGX Shortcut Copperhead for Prusa MK3S

Description

Bondtech LGX Shortcut Copperhead for Prusa MK3S

Master All Materials • Excel With Flexibles

The LGX Shortcut Copperhead Print Head is a special unit that includes the LGX™ Large Gears eXtruder and the LGX Shortcut short filament path Copperhead hotend, capable of mastering all materials and excelling with soft and flexible filaments.

Direct Drive Upgrade

This LGX-based upgrade kit is an easy-to-install replacement for the stock direct drive extruder. It requires the accessories included in the LGX Shortcut Copperhead Accessories for Prusa MK3S package and the LGX Shortcut Copperhead hotend.

Easy To Install

A very intuitive upgrade kit where the extruder faces the X-carriage, reducing the distance between the nozzle and the X-axis.

Leading Grip Power

The LGX is the Bondtech extruder with the highest filament grip, thanks to its large drive wheels that engage more teeth with the filament.

MMU Compatibility

This upgrade kit is not compatible with any MMU version.

Custom Firmware Required

You need to update your Prusa’s firmware to use this product. A new firmware version is available for download.

Open this link to download the firmware.

Enjoy Bondtech’s Evolved Dual Drive Technology

This extruder includes Bondtech’s advanced Dual Drive Technology with larger drive gears. It is one of seven new features:

• Larger drive wheels for improved filament grip

• Filament pre-tension lever for consistent results

• Multi-function interface socket for quick tool or application swap

• Maintenance windows for easy cleaning

• Compact, light, and symmetric design for performance and compatibility

• Multiple mounting hole patterns for flexible setup

• Eco-friendly packaging without bleaching or coating

3D Printed Housing using PA12

The housing parts are professionally printed in nylon for maximum strength, precision, and heat resistance.

Compatible Nozzles

The hot block is compatible with RepRap standard nozzles, including:

• From Bondtech: Standard Brass, Standard Coated Brass, CHT Coated Brass

• From Slice Engineering: Copper, Vanadium Steel (for abrasive filaments)

The Bondtech LGX Shortcut Copperhead for Prusa MK3S is a direct drive upgrade kit that replaces the original extruder. It combines Bondtech’s LGX™ Large Gears Extruder with Slice Engineering’s Copperhead hotend, delivering improved extrusion control, high temperature capability, and reliable performance across a wide range of materials.Key FeaturesDirect drive upgrade for Prusa MK3SIncludes Bondtech LGX extruder and Copperhead hotendHigh temperature support for advanced materialsImproved filament grip and extrusion precisionCompatible with flexible and abrasive filamentsDurable and reliable performance- EXT-KIT-88- 300.0- Hersteller: Bondtech
